SHENZHEN HUANLIANG TECHNOLOGY CO.,LTD (HL-TEK LIMITED)

Product name : 12V8A
Product No. : HL-SW09
Input : AC 100-240V
Output : DC 12V 8A
Power : 96W
DC Pin : 5.5*2.5mm/5.5*2.1mm/others

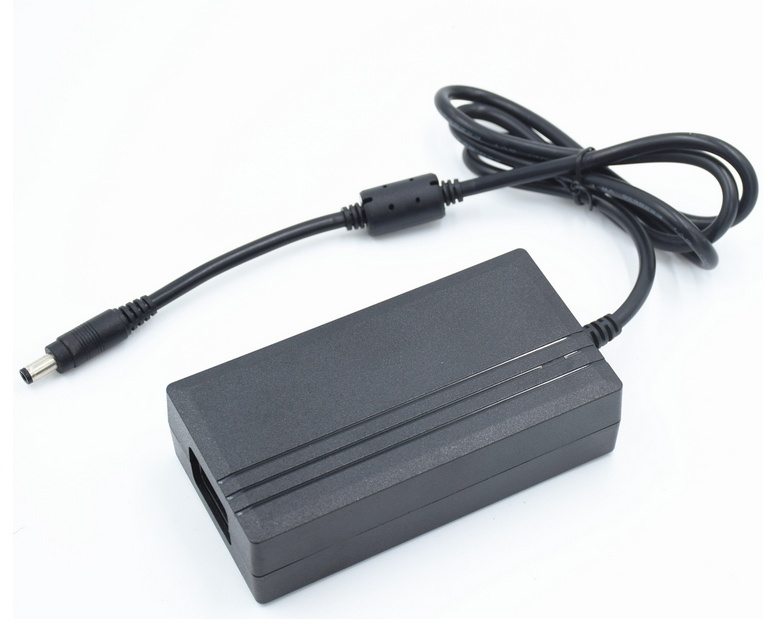

product name : switching power adapter 12V 8A
Model : HL-SW09
compatible for : CCTV,LED,Moul,Camera,etc.
warranty : 2years
package : brown box/customized
ac cable : AU,EU,US,UK,etc.for choice
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 high quality ac/dc adapter 12v8a 96w led power charger

input: 100~240VAC
output: 12V8A 96W
switching power adapter ac/dc adapter
UL,CE,FCC,GS,SAA,PSE,EK
2 years warranty..

96W 12V8A  ac/dc adpater switching power adapter

Output power 12V8A

Approved by CE GS UL FCC ROHS,C-TICK,TUV
desktop type , C6,C7,C8,C14 inlet optional



ac/dc adpater switching power adapter Spec. as following:



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

0.3A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

12V8A

Output power :

96W

Ripple and Noise :

<120Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection for power adapter

Leakage Current:

<5mA

DC cable   length:

1.5 meters

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006

Application:

can fit UK US Euroepan market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , mobile phone ,pos machine ,laptop ac adapter and so on .
